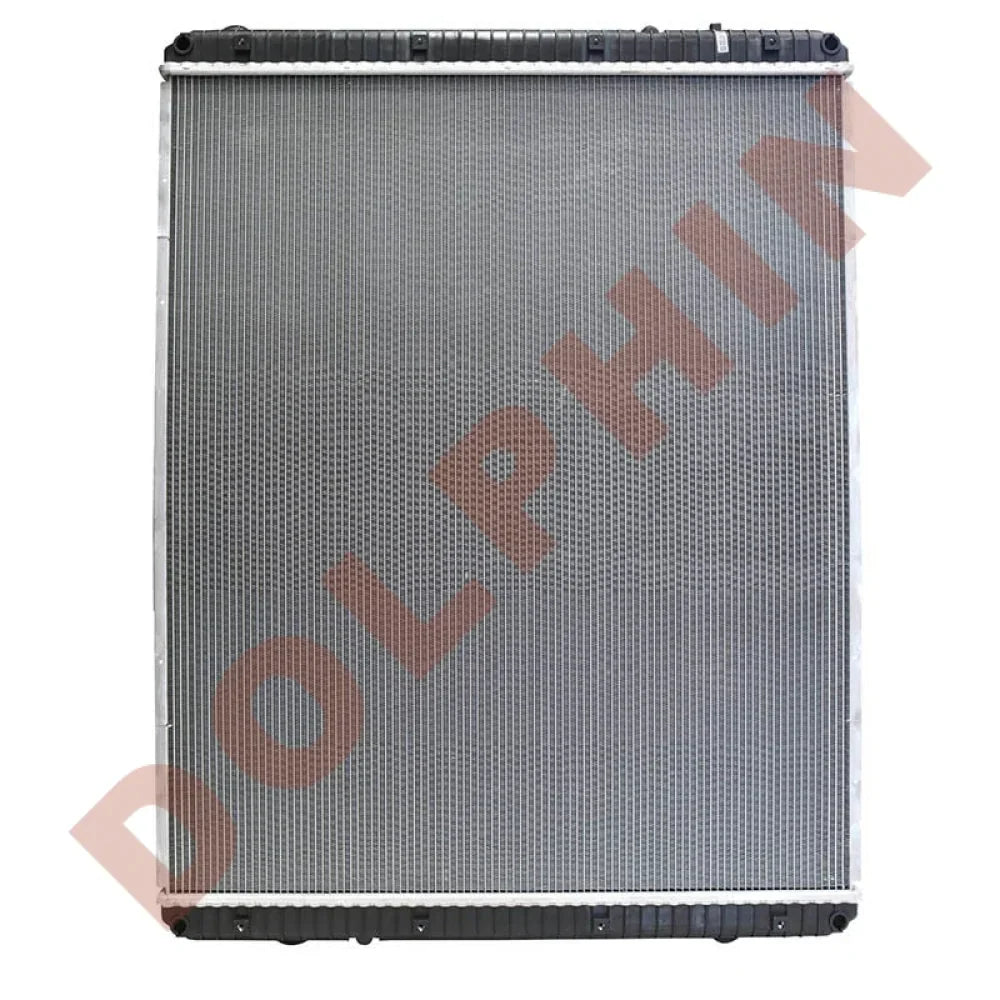

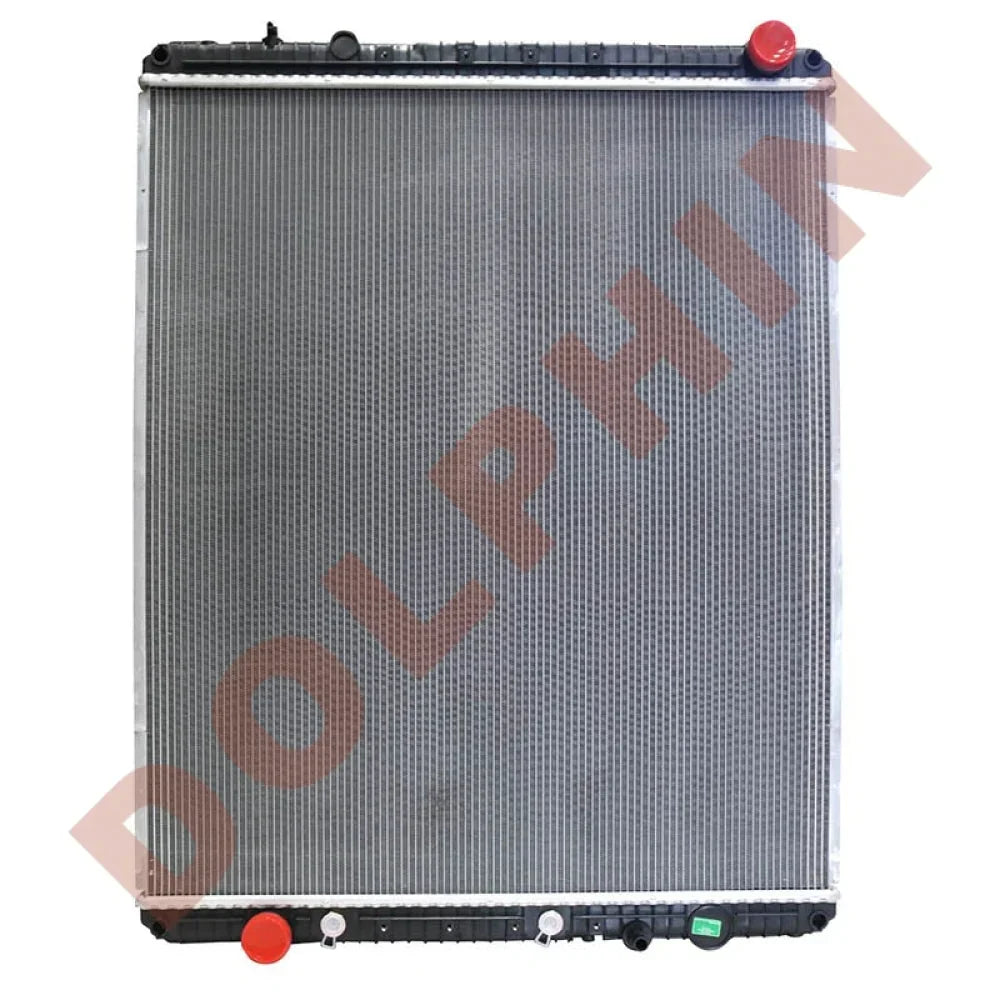

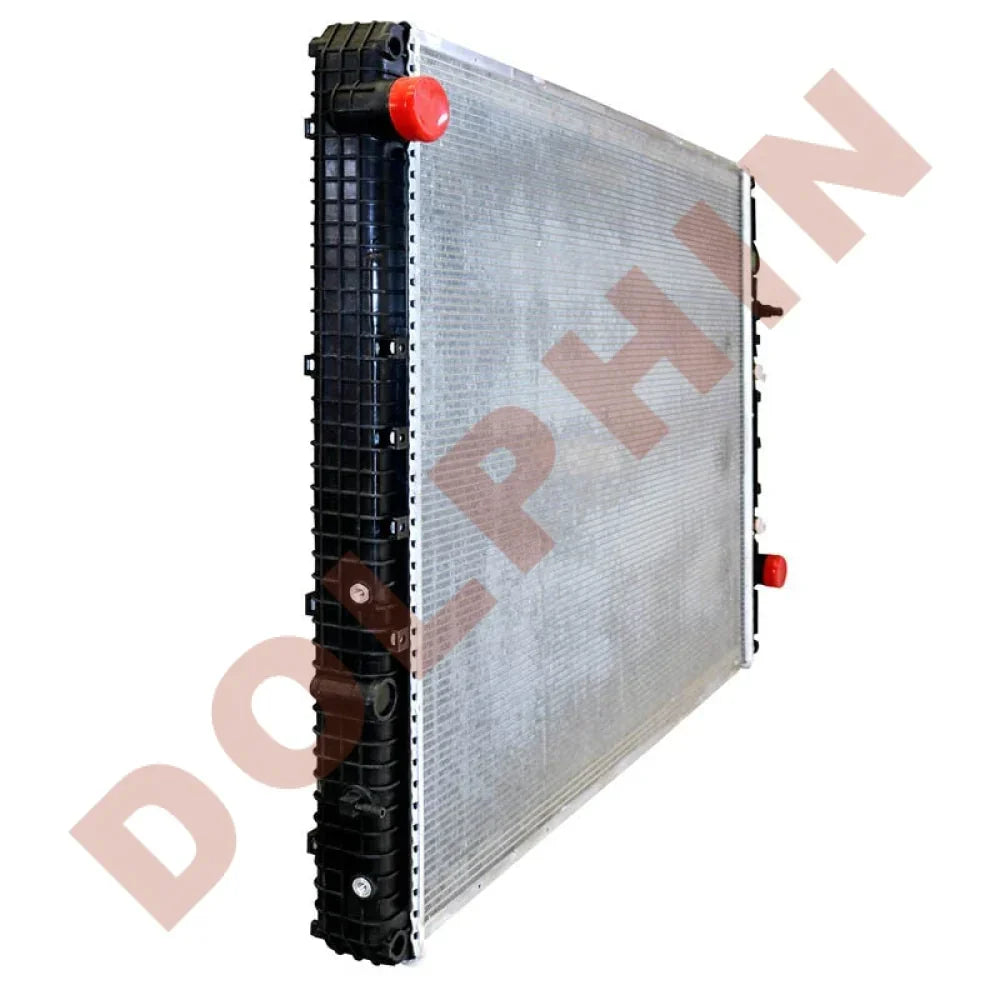

FREIGHTLINER Radiator - Cascadia, FL120SD (2008-2013) 1159 x 1005 x 54 mm
| Part Number |
|
FREIGHTLINER Radiator - Cascadia, FL120SD (2008-2013) 1159 x 1005 x 54 mm
| Material | Aluminium Plastic |
|---|---|
| Other Similars | View |
| Manufacturer |
FREIGHTLINER |
|---|---|
| Vehicle |
Cascadia |
| Model |
FL120SD |
| Year |
2008-2013 |
| Fuel |
Diesel |
| Transmission |
Automatic |
| Engine |
Series 60, DD13, DD15, ISX, CAT C13/C15, MBE4000 |

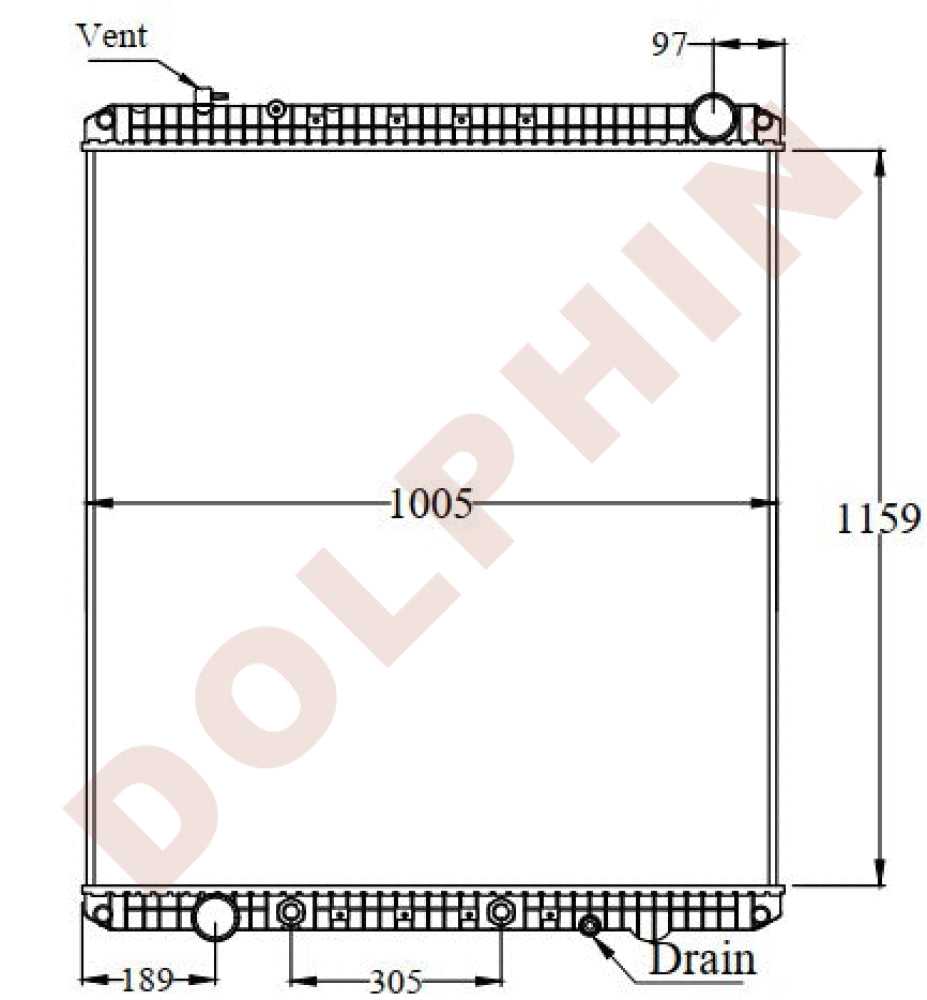

| Core Size |
1159 x 1005 x 54 mm |
| Core Height |
1159 mm |
| Core Width |
1005 mm |
| Core Depth |
54 mm |
| Core Style | |
| Inlet |
64 mm |
| Outlet |
64 mm |
| Fin Type |
Serpentine |
| Fin Style |
Louvered |
| FPI |
16 FPI |
| Tube Type |
Smooth |
| No Of Rows |
2 Row |
| TOC |
305 C/C (3/4"-16UNF) |
| Material | Aluminium Plastic |
| Net Weight |
29.7 kg |
| Cross Reference/OEM |
800106, 238632, FRE51, 05-26621-003, 0526621003, 05 26621 003, 05.26621.003, 05-26621-007, 0526621007, 05 26621 007, 05.26621.007, 05-26621-009, 0526621009, 05 26621 009, 05.26621.009, 05-26621-011, 0526621011, 05 26621 011, 05.26621.011, 05-27747-003, 0527747003, 05 27747 003, 05.27747.003, 05-27747-007, 0527747007, 05 27747 007, 05.27747.007, 05-29615-003, 0529615003, 05 29615 003, 05.29615.003, 05-29615-007, 0529615007, 05 29615 007, 05.29615.007, A05-25302-003, A0525302003, A05 25302 003, A05.25302.003, A05-25302-007, A0525302007, A05 25302 007, A05.25302.007, A05-25302-011, A0525302011, A05 25302 011, A05.25302.011, A05-25302-015, A0525302015, A05 25302 015, A05.25302.015 |
| Note: | All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference. Suggested retail prices displayed. Please contact us for bulk orders, our sales specialists will provide you with the most competitive bulk/wholesale prices. |
| Similar Parts | ||
|---|---|---|
| Description | Part Number | |
| Copper Brass Radiator/ 4 Row | 6501197 | View |
