- MACK Radiator - CH Series, CX Vision (1990-2005) 740 x 998 x 48 mm
MACK Radiator - CH Series, CX Vision (1990-2005) 740 x 998 x 48 mm
| Part Number |
|
MACK Radiator - CH Series, CX Vision (1990-2005) 740 x 998 x 48 mm
| Material | Aluminium Plastic |
|---|---|
| Other Similars | View |
| Manufacturer |
MACK |
|---|---|
| Model |
CH Series, CX Vision |
| Year |
1990-2005 |
| Fuel |
Diesel |
| Transmission |
Manual |

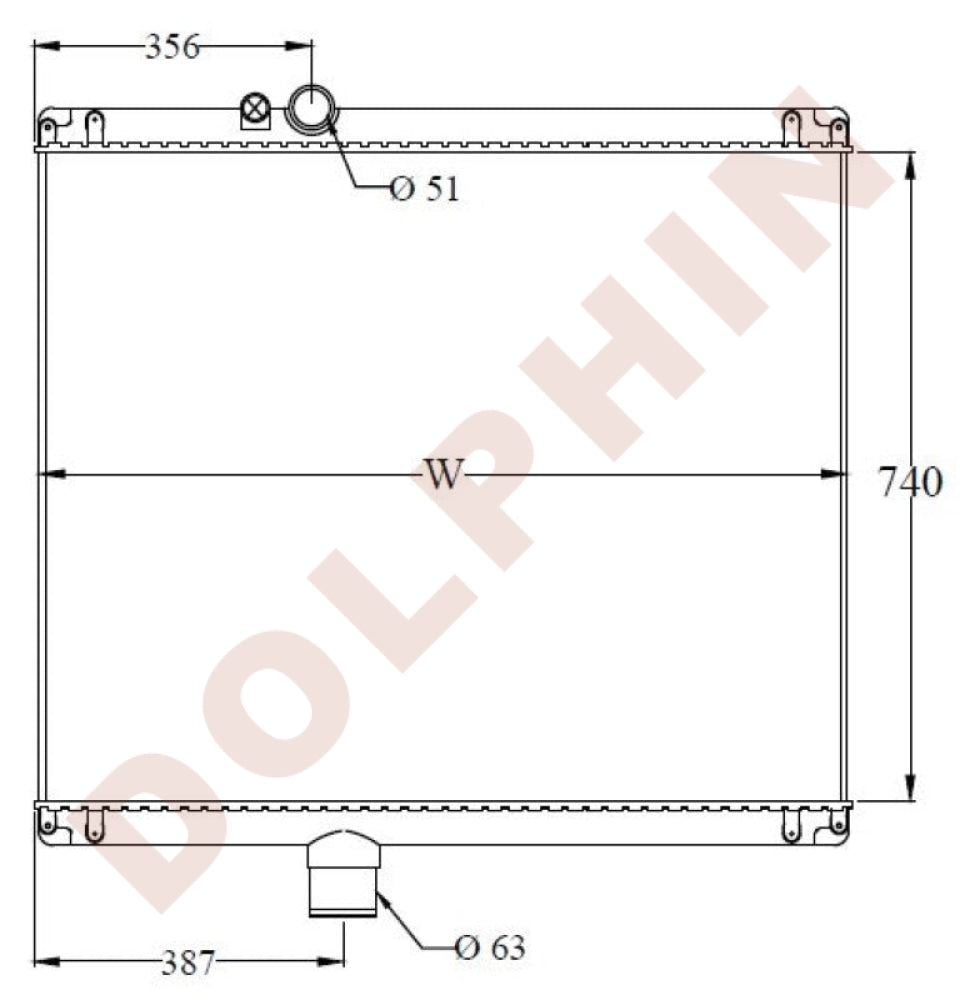

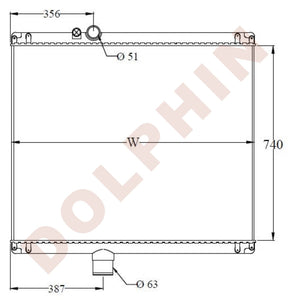

| Core Size |
740 x 998 x 48 mm |
| Core Height |
740 mm |
| Core Width |
998 mm |
| Core Depth |
48 mm |
| Core Style | |
| Inlet |
51mm Upper Left |
| Outlet |
63mm Lower Left |
| Fin Type |
Serpentine |
| Fin Style |
Louvered |
| FPI |
14 FPI |
| Tube Type |
Smooth |
| No Of Rows |
2 Row |
| TOC |
No |
| EOC |
No |
| Material | Aluminium Plastic |
| Net Weight |
38.08 kg |
| Cross Reference/OEM |
239126, 730005, CVTW80532, CTVTM80533, CTVTU80533, CTVTW80532, 11C7576ST, 11C7576, 21003596, TR9126, SC239126, SCSI239126, 559126, 2400398, RADMA101, MA101, RC2360, REA4210171, 213001, HD213001, 1002370, 1003470, 1003470CS, 20961003470, 20961003470CS, 1003486, 1003486F, 1003486FS, 20961003486, 20961003486F, 20961003486FS, 1003596, 1003596AS, 20961003596, 20961003596AS, 1102027, 20961102027, 1102134, 20961102134, 1102134AS, 1102135, 20961102134AS, 20961102319, 1102319, 1050030, 1050071, 25170519, 2MF58M, 2MF513M, 2MF514M, 3MF5507M, 3MF5507M2, 3MF5532M, 3MF5548M, 732077, 732834, 734344, 734352, 734360, CH7540197 |
| Note: | All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference. Suggested retail prices displayed. Please contact us for bulk orders, our sales specialists will provide you with the most competitive bulk/wholesale prices. |
| Similar Parts | ||
|---|---|---|
| Description | Part Number | |
| Aluminium Plastic Hour glass Radiator | 6801201 | View |
| Copper Brass Radiator/ 3 Row | 6500771 | View |
| Copper Brass Radiator/ Flat fin / 4 Row | 6500822 | View |
