- INTERNATIONAL Radiator - 4700, 4900 Series 756 x 664 x 61 mm
| Part Number |
|

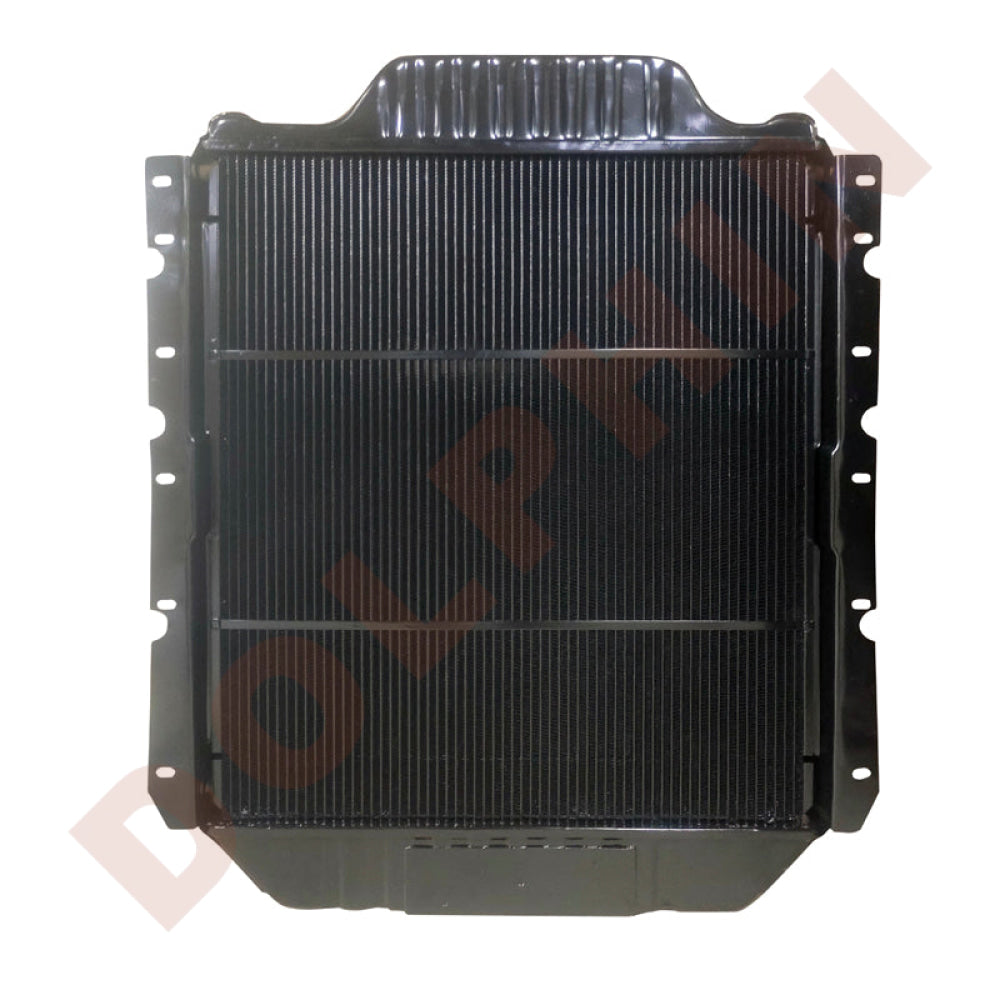

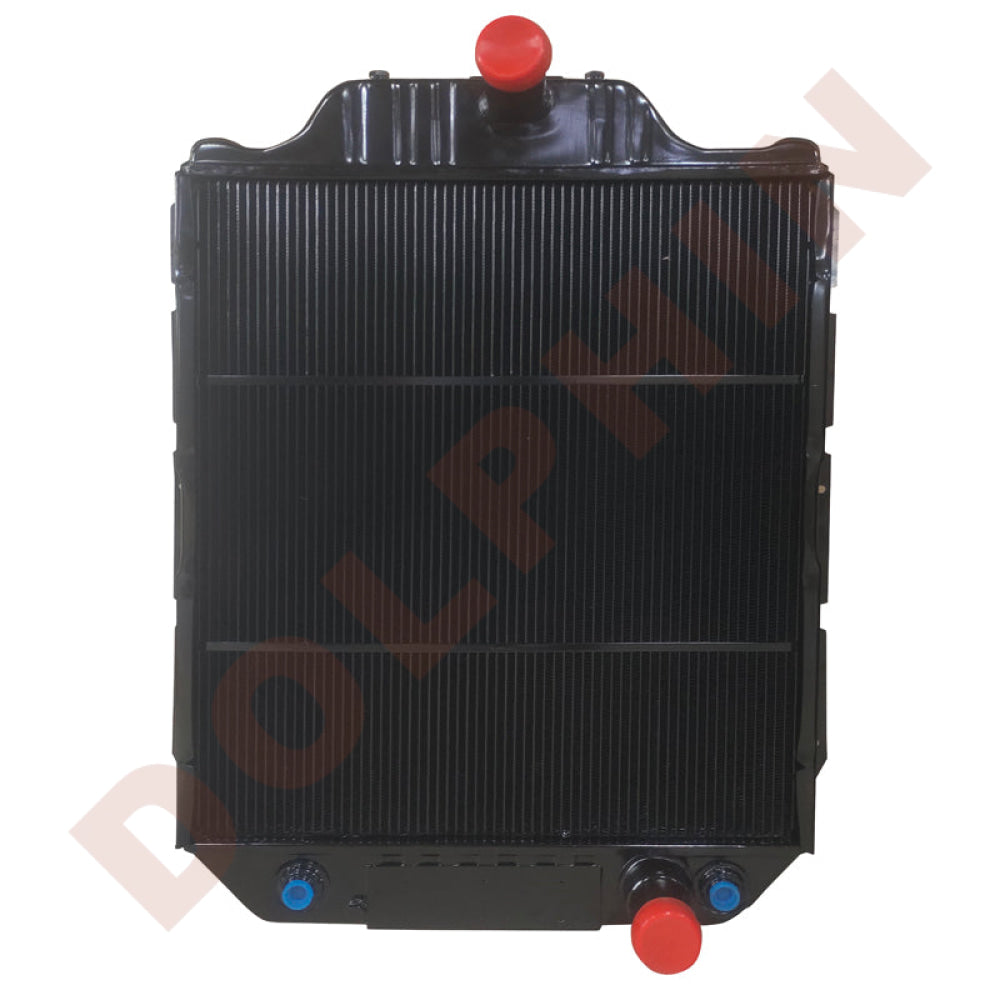

INTERNATIONAL Radiator - 4700, 4900 Series 756 x 664 x 61 mm
| Material | Copper Brass |
|---|---|
| Manufacturer | INTERNATIONAL |
|---|---|
| Model | 4700, 4900 Series |
| Year | - |
| Fuel | Diesel |
| Transmission | Automatic |

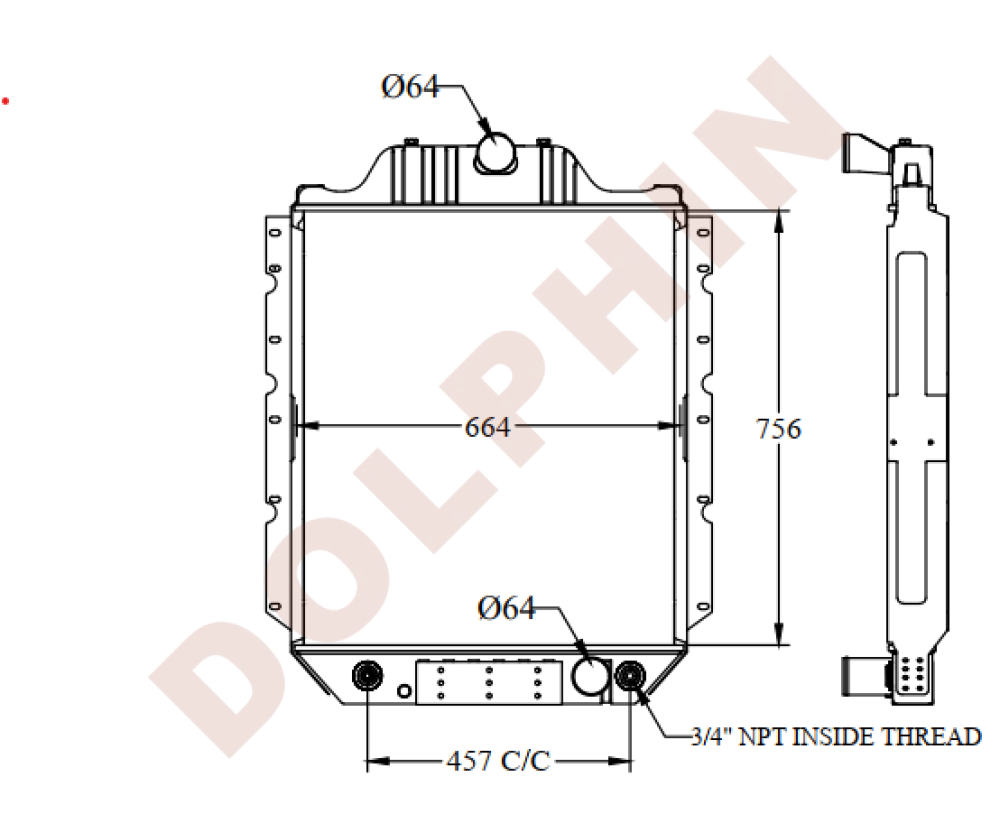

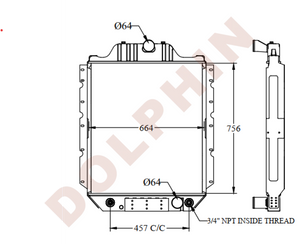

| Core Size | 756 x 664 x 61 mm |
| Core Height | 756 mm |
| Core Width | 664 mm |
| Core Depth | 61 mm |
| Core Style | XM (See Core Pattern) |
| Inlet | 64mm Lower Right |
| Outlet | 64mm Upper Center |
| Fin Type | Serpentine |
| Fin Style | Louvered |
| FPI | 16 FPI |
| Tube Type | Smooth |
| No Of Rows | 4 Row |
| TOC | 18" Centers (3/4"NPT-14TPI) |
| EOC | No |
| Material | Copper Brass |
| Net Weight | 42.6852 kg |
| Cross Reference/OEM | 550201, 640052, INT52, IN39720C, CAVTU81943, CVTU81944, CAVTU81944, IN81940C, 230201, FLX000727, SRM1995N, 551995N, RADIN131, 1A16141G, 1A17910D, 1001995, 1648675C91, 1651725C91, 1651725C92, HDC011034SK |
| Note: | All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference. Suggested retail prices displayed. Please contact us for bulk orders, our sales specialists will provide you with the most competitive bulk/wholesale prices. |
