- INTERNATIONAL Radiator - 4700, 4800, 4900, CE Bus (1994-2004) 686 x 312 x 61 mm

Part Number |
|
INTERNATIONAL Radiator - 4700, 4800, 4900, CE Bus (1994-2004) 686 x 312 x 61 mm
Material | Copper Brass |
---|---|
Manufacturer | INTERNATIONAL |
---|---|
Model | 4700, 4800, 4900, CE Bus |
Year | 1994-2004 |
Fuel | Diesel |
Transmission | Automatic |

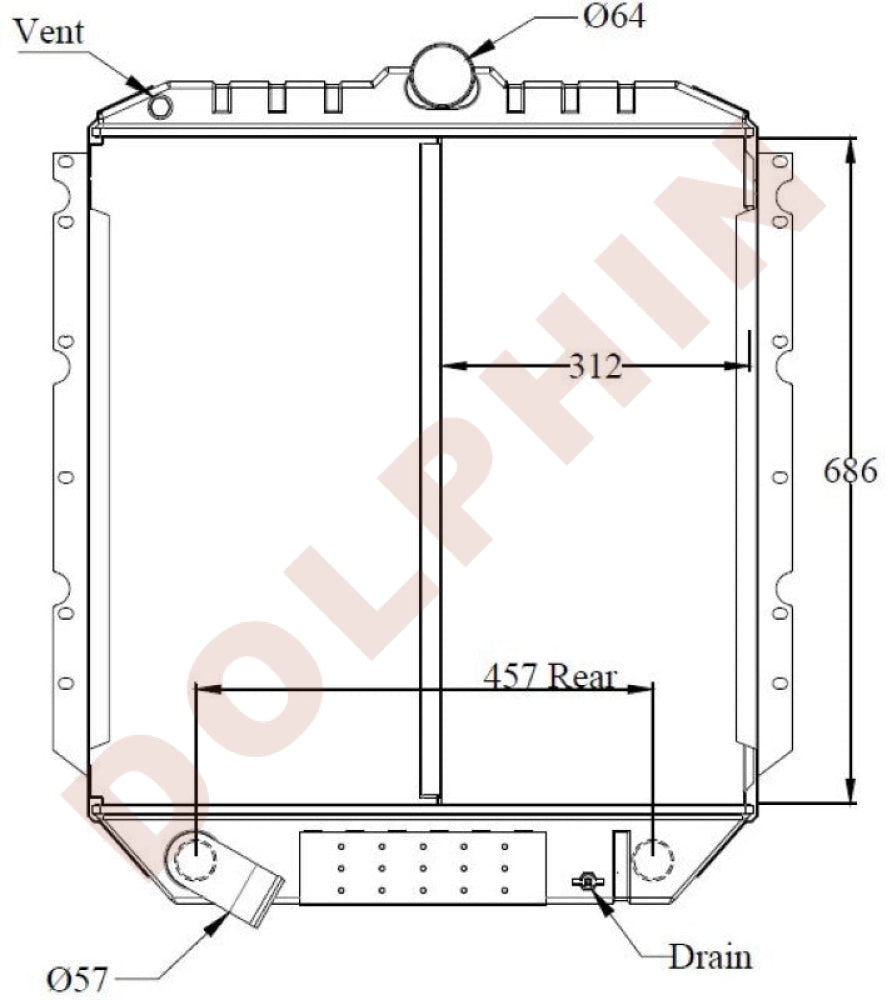

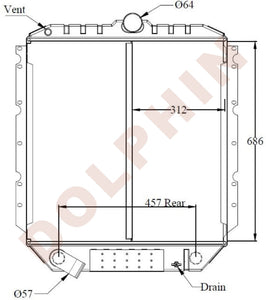

Core Size | 686 x 312 x 61 mm |
Core Height | 686 mm |
Core Width | 312 mm |
Core Depth | 61 mm |
Core Style | XM (See Core Pattern) |
Inlet | 57mm Lower Left |
Outlet | 64mm Upper Center |
Fin Type | Serpentine |
Fin Style | Louvered |
Tube Type | Smooth |
No Of Rows | 4 Row |
TOC | Grill Side 18" Centers (3/4"NPT-14TPI) |
EOC | No |
Material | Copper Brass |
Net Weight | 42.7518 kg |
Cross Reference/OEM | 640064, 640064ST, SRM6464, 615RA064, 55640064, 4064R, S6472, INT74, 238514, TR8514, SC238514, SCSI238514, 558514, IN8187OC, CAVTU81874, 437321, 437321S, 12981S, FLX000785, HDC010230, HDC010230SK, HDC010705, 20063528A, SPI20063528A, ABPN2020063528A, AFA000787, 1697467C1, 1697467C2, 2023280C92, 2029208C91, 2505157C1, 3527217C91, 3527217C92, 3527217C93, 3527217C94, 1A16892G, 1A16905G, 1A17890D, 1A18120D, 1A18581D, 1A19014D, 3A45017G, 3A48120D1, 3A50251D |
Note: | All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference. Suggested retail prices displayed. Please contact us for bulk orders, our sales specialists will provide you with the most competitive bulk/wholesale prices. |
