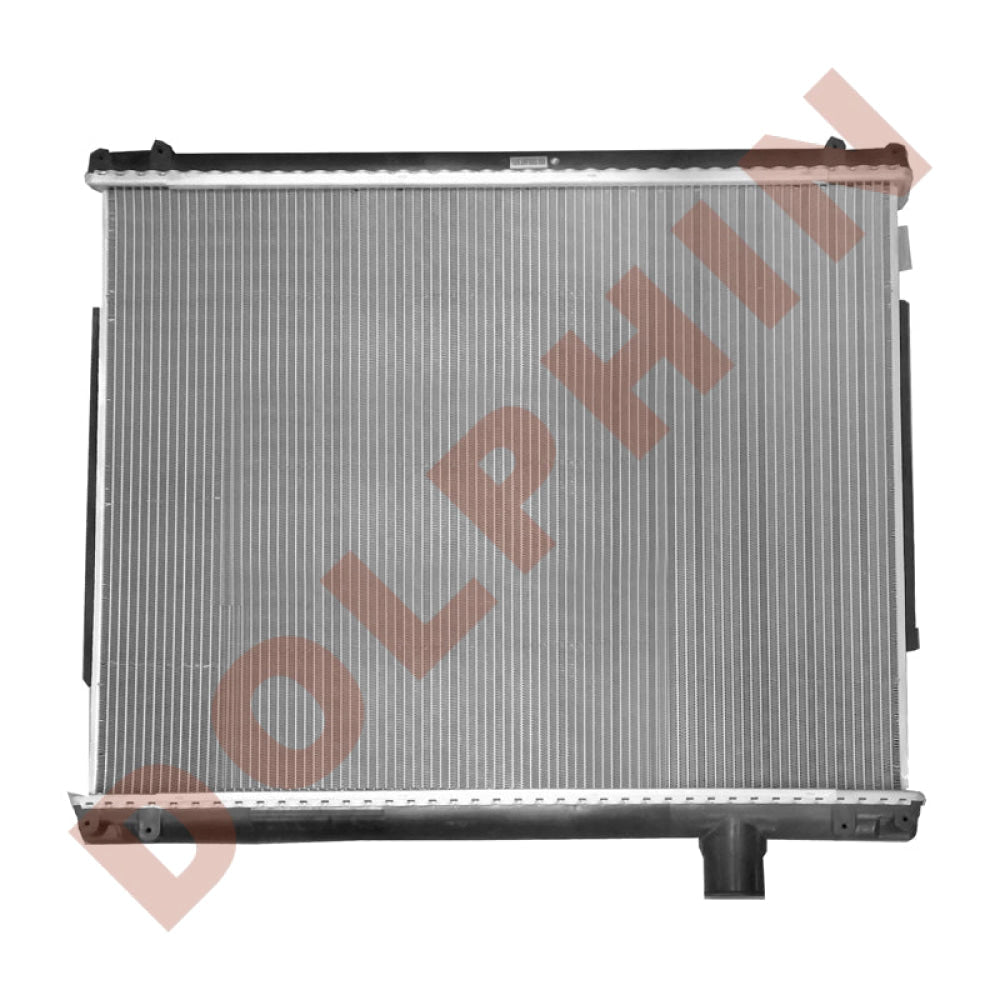

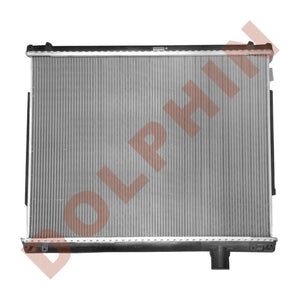

MACK Radiator - RD600,RD688S, RL/RS, CV613/713 Series (1994-2008) 697 x 870 x 45 mm


Material	Copper Brass
Other Similars	View

Quantity
Ask For Price
Add To Enquiry Cart
Error Quantity must be 1 or more

Standard Shipping Fast delivery between 1 to 2 weeks from factory

Manufacturer	MACK
Model	RD600,RD688S, RL/RS, CV613/713 Series
Year	1994-2008
Fuel	Diesel
Transmission	Manual

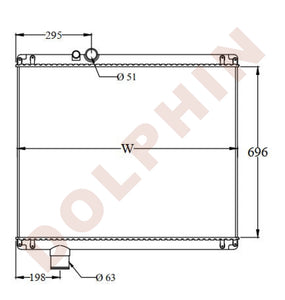

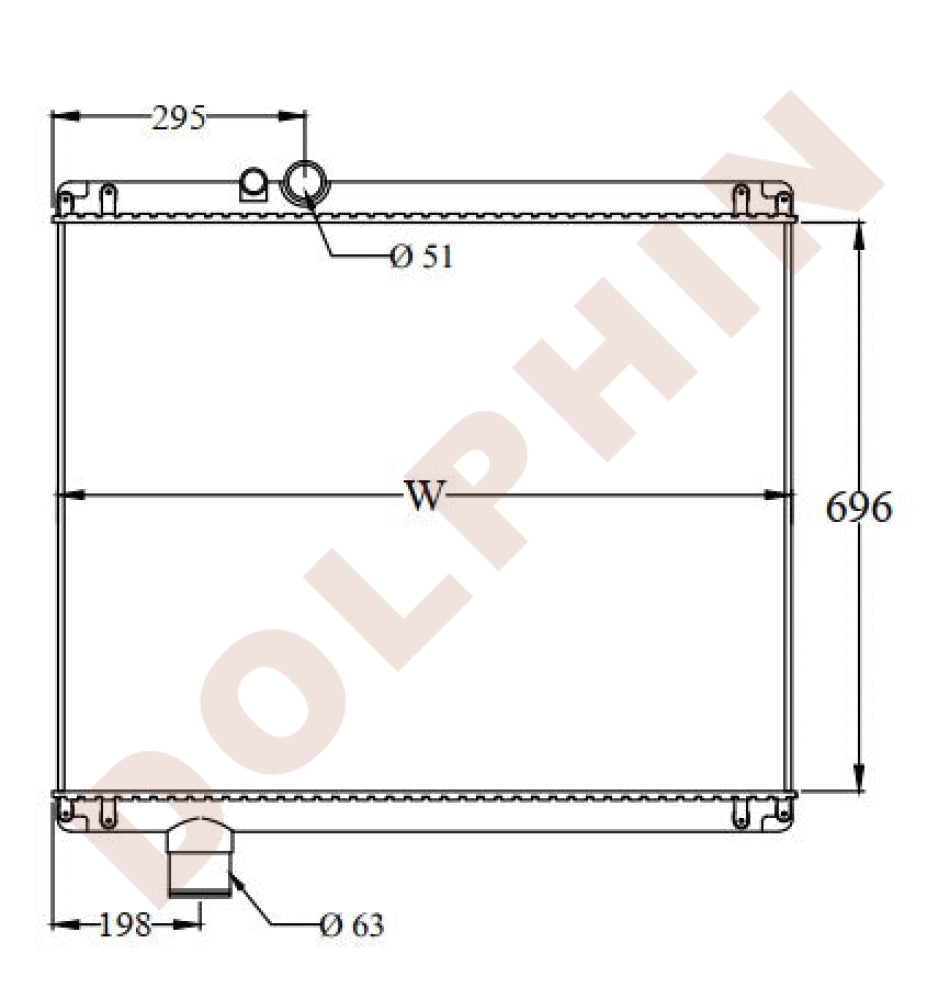

Core Size	697 x 870 x 45 mm
Core Height	697 mm
Core Width	870 mm
Core Depth	45 mm
Core Style	XM (See Core Pattern)
Inlet	51mm Upper Left
Outlet	63mm Lower Left
Fin Type	Serpentine
Fin Style	Louvered
FPI	14 FPI
Tube Type	Smooth
No Of Rows	3 Row
TOC	No
EOC	No
Material	Copper Brass
Net Weight	17.57 kg
Cross Reference/OEM	-
Note:	All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference. Suggested retail prices displayed. Please contact us for bulk orders, our sales specialists will provide you with the most competitive bulk/wholesale prices.
