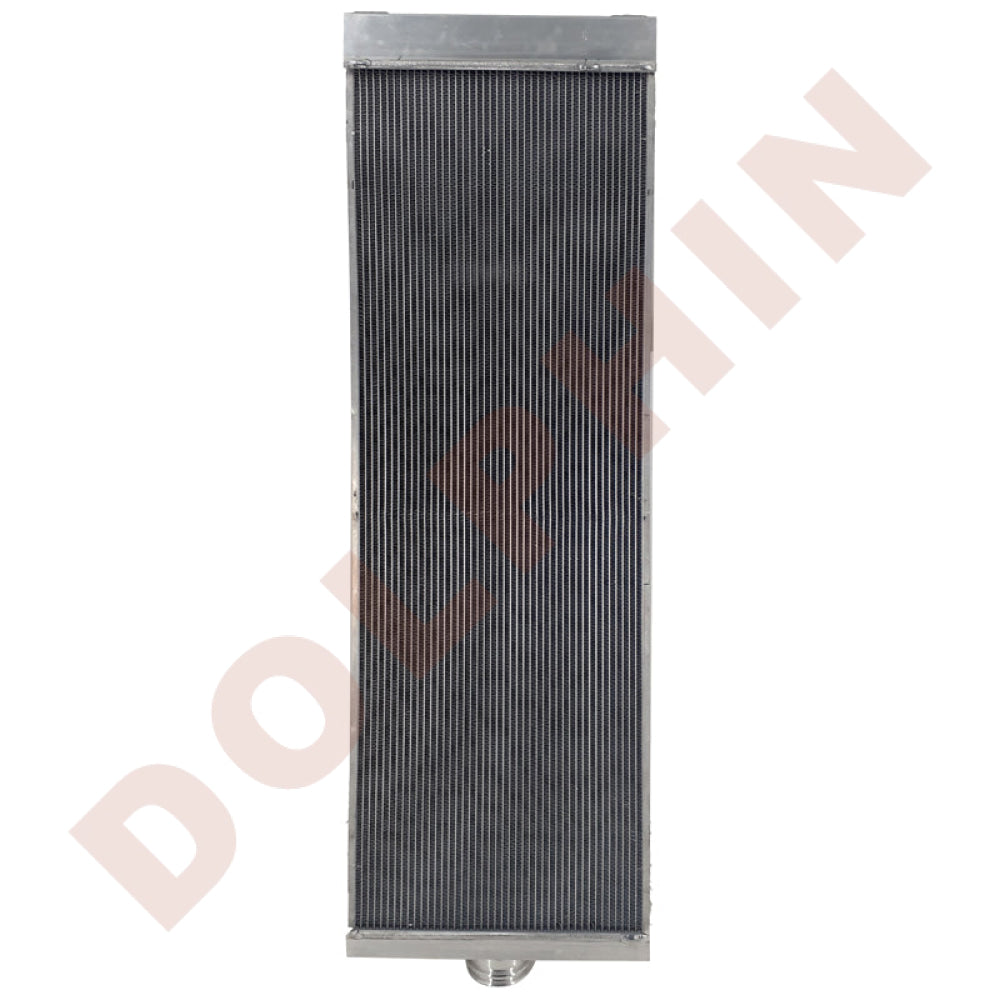

KOMATSU Radiator - Dump Truck HD785-7 - 1383 x 444 x 126 mm

Quantity
Ask For Price
Add To Enquiry Cart
Error Quantity must be 1 or more

Standard Shipping Fast delivery between 1 to 2 weeks from factory

Manufacturer	KOMATSU
Model	Dump Truck HD785-7
Year	-
Fuel	-
Transmission	Manual
Engine	-

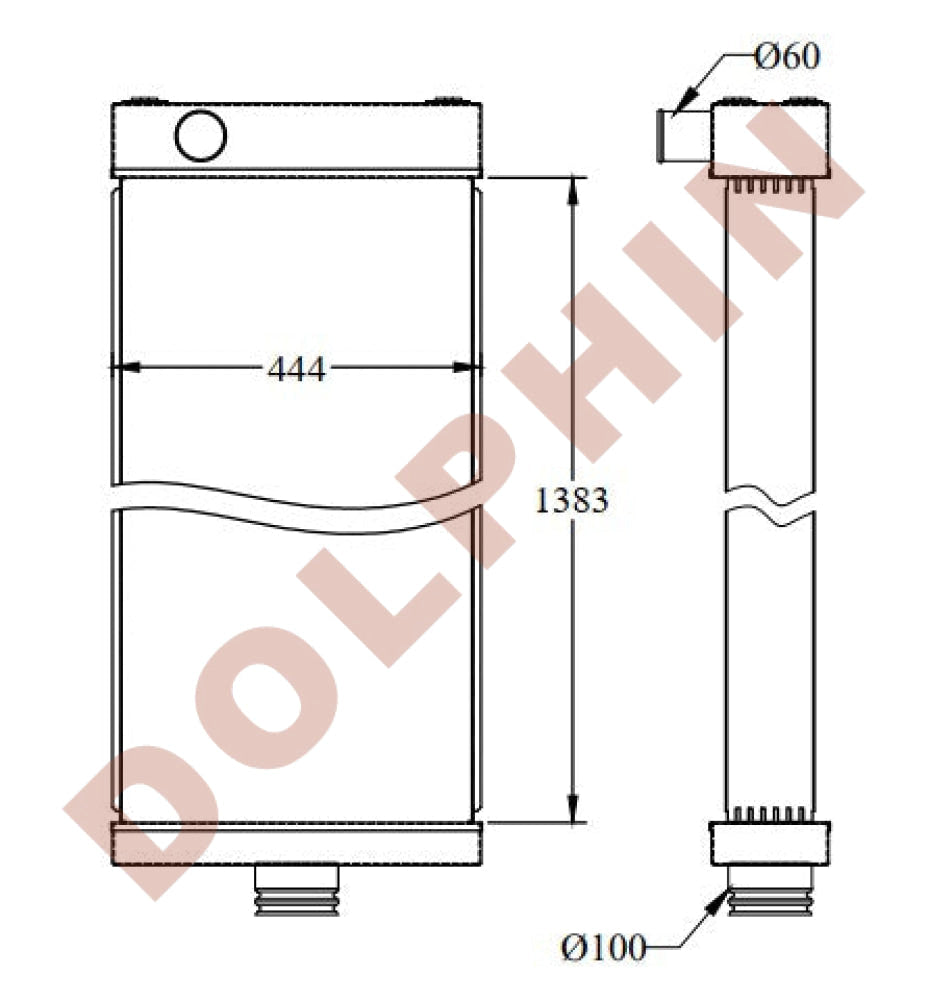

Core Size	1383 x 444 x 126 mm
Core Height	1383 mm
Core Width	444 mm
Core Depth	126 mm
Core Style	A9.85SQ (See Core Pattern)
Inlet	60mm Upper Left
Outlet	100mm Lower Center
Fin Type	Square wave
Fin Style	Wavy
FPI	8 FPI
Tube Type	Smooth
No Of Rows	5 Row
TOC	No
EOC	No
Material	Complete Aluminium
Net Weight	43.5344 kg
Cross Reference/OEM	1771-086-1021, 561-03-81642, 561-03-81641, 561-03-82700, 561-03-82703, 561-03-82704, 561-03-82705
Note:	All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference. Suggested retail prices displayed. Please contact us for bulk orders, our sales specialists will provide you with the most competitive bulk/wholesale prices.
